?Q20HK-900R定向耦合器

根本產品參數

Q20HK-900R定向耦合器

聲音頻率：0.8 – 1 GHz合體：20聲貝±0.5聲貝朝向性：18聲音分貝駐波比：1.3:1插進材料耗費：0.25dB電功率：80瓦評詁板722-0006-07-E01備貨壽命：6-8周

品牌：Electro-Photonics

廠品詳情了解了解

800-1000 MHz Directional Coupler

The Q20HK-900R is a bi-directional coupler with high directivity and high power handling. Q20HK-900R is a replacement for Soshin P/N GSC302-20M0900. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

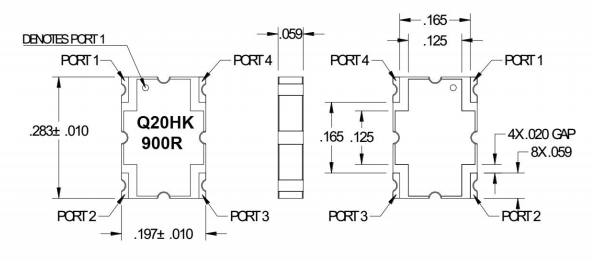

Size: 0.283 x 0.197 inches
Frequency: 0.8 – 1 GHz
Coupling: 20 dB ± 0.5 dB
Directivity: 18 dB
VSWR: 1.3:1
Insertion Loss: 0.25 dB
Power: 80 W
Evaluation board 722-0006-07-E01
