?Q30HE-900R定向耦合器
?Q30HE-900R定向耦合器
極為重要參數表

Q30HE-900R定向耦合器

率：0.7 – 1.2 GHz交叉耦合：30.兩分貝±一分貝交叉耦合比較平整度：±0.3dB領域性：18聲音分貝駐波比：1.10:1放入耗用：0.1dB耗油率：355瓦考評板722-0006-05-E01定貨階段：6-8周

品牌：Electro-Photonics

食品商品詳情頁介召

700-1200 MHz Directional Coupler

The Q30HE-900R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…

Specifications

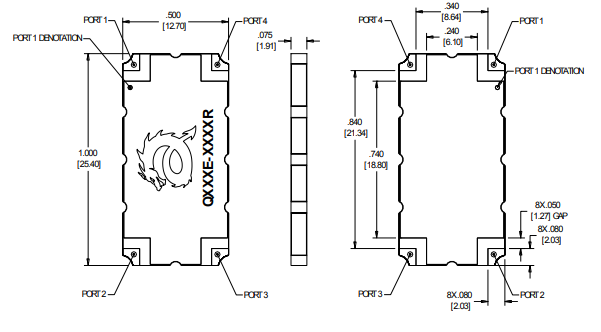

  • Size: 1.00 x 0.50 inches
  • Frequency: 0.7 – 1.2 GHz
  • Coupling: 30.5 dB ± 1 dB
  • Coupling Flatness: ± 0.3 dB
  • Directivity: 18 dB
  • VSWR: 1.10:1
  • Insertion Loss: 0.1 dB
  • Power: 355 W
  • Evaluation board 722-0006-05-E01
