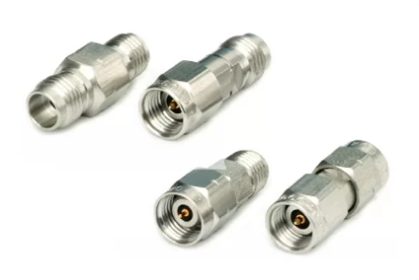

KRYTAR同軸更換器

發布新聞用時：2022-06-01 17:10:04 搜素：1081

KRYTAR設定和制做十分勞固的rf射頻/微波射頻同軸配適器，可作作商業運作服務和國防安全軍事戰爭專業市場的各樣無線路由通信的設配操作、探測的設配和同軸電纜的設配。

KRYTAR同軸支持器可提高并聯電阻計算和并聯電阻計算之中的鏈接器配用，收錄母公戶的、公對母、公公戶的和母對母。鏈接器型號收錄SMA、2.92mm、2.4mm和2.92mm至2.4mm。

KRYTAR同軸更換器基本有現貨黃金批發商至30天ARO。

KRYTAR為考慮或高達關鍵性功能性和/或設計方案規格的訂做設計方案帶來了完整的性的水利工程安全服務。

基本特征

DC至 67 GHz

SMA / 3.5 mm / 2.4 mm / 2.92 mm

成都市立維創展自動化品牌授權進口代理RADITEK貨品，有些尺寸配備現貨平臺。貨品原放進口貨進口貨，安全性能保持，歡迎會諮詢。

祥情知道RADITEK請點擊：//takasago.net.cn/brand/13.html

Model Number	Freq. Min (DC)	Freq. Max(GHz)	Adapter Type	Type Connector	Connector Configuration	VSWR (Max)
4030	DC	67	In Series	1.85mm	Female to Male	1.15, 18.0 to 40.0 GHz1.18, 40.0 to 50.0 GHz1.25, 50.0 to 67.0 GHz
4031	DC	67	In Series	1.85mm	Male to Male	1.15, 18.0 to 40.0 GHz1.18, 40.0 to 50.0 GHz1.25, 50.0 to 67.0 GHz
4032	DC	67	In Series	1.85mm	Female to Female	1.15, 18.0 to 40.0 GHz1.18, 40.0 to 50.0 GHz1.25, 50.0 to 67.0 GHz
3030	DC	50	In Series	2.4mm	Female to Male	1.10, DC to 27 GHz1.15, 27 to 40 GHz1.20, 40 to 50 GHz
3031	DC	50	In Series	2.4mm	Male to Male	1.10, DC to 27 GHz1.15, 27 to 40 GHz1.20, 40 to 50 GHz
3032	DC	50	In Series	2.4mm	Female to Female	1.10, DC to 27 GHz1.15, 27 to 40 GHz1.20, 40 to 50 GHz
2030	DC	40	In Series	2.92mm	Female to Male	1.10, DC to 27 GHz1.15, 27.0 to 40 GHz
2031	DC	40	In Series	2.92mm	Male to Male	1.10, DC to 27 GHz1.15, 27.0 to 40 GHz
2032	DC	40	In Series	2.92mm	Female to Female	1.10, DC to 27 GHz1.15, 27.0 to 40 GHz
5010	DC	40	Between Series	2.92mm to 2.4mm	Female to Female	1.10, DC to 18 GHz1.15, 18 to 40 GHz
5020	DC	40	Between Series	2.92mm to 2.4mm	Female to Male	1.10, DC to 18 GHz1.15, 18 to 40 GHz
5030	DC	40	Between Series	2.92mm to 2.4mm	Male to Female	1.10, DC to 18 GHz1.15, 18 to 40 GHz
5040	DC	40	Between Series	2.92mm to 2.4mm	Male to Male	1.10, DC to 18 GHz1.15, 18 to 40 GHz
1030	DC	27	In Series	SMA	Female to Male	1.10, DC to 18 GHz1.15, 18 to 27 GH
1031	DC	27	In Series	SMA	Male to Male	1.10, DC to 18 GHz1.15, 18 to 27 GHz
1032	DC	27	In Series	SMA	Female to Female	1.10, DC to 18 GHz1.15, 18 to 27 GHz
