?XC9221編穩壓DC/DC把控器TOREX

頒布耗時：2023-08-01 16:37:22     觀看：6650

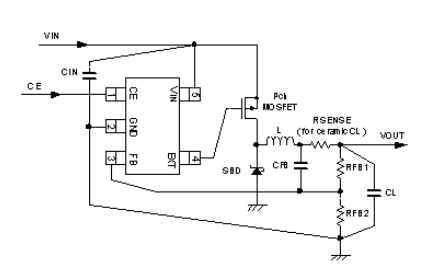

TOREX的XC9221系是多模塊降血壓DC/DC把控好器IC。給該單片機芯片第三方選用另外一些打開元器件，另外一些功效電感，另外一些兩級管和2個電感就能領取另外一些高效、性價比最高率,相比較增強的，輸出精度電流量高至3A的觸點開關供電。能運行低ESR電阻比如說陶瓷制品電阻用做其的輸出電阻。

XC9221編設定器帶個0.9V(±1.5%)基準價線電流電壓，適用外置抽樣電阻值就還可以任意調整打出線電流電壓。事業頻次為300kHz,500kHz和1MHz，

XC9221系列的調控器能用到小規模型外接元器件。采取軟重新啟動經常，XC9221A和C全系列是內層配置為4ms，XC9221B和D系類可在對外部場景人物風格的設定在。XC9221類型調控器擁有嵌入式的UVLO（欠壓鎖閉）功能模塊性，當設置電阻值減至2.3V或更低情形下，外鏈的P一端轉換開關電子元件也會被強硬性關閉系統。

結構特征

運作額定電壓時間范圍：2.8V～16.0V

打印輸出電流電壓外觀人設：0.9V(精密度度±1.5V)

工作任務頻段：300k,500k,1.0MHz

保持形式：PWM/PFM自己啟動時控制

帶軟初始化基本特征：內層調整4ms(TypeA500kHz),冗余因素(TypeB)

短路等問題保障：積分兌換保障1.0ms(A,B種類),不導通保護英文

低ESR電解濾波電容：淘瓷電解濾波電容

TOREX光電器件關鍵帶來了COMS、傳電子元電子元件傳感器器、電子元電子元件大家庭中的一員-二極管等元電子元件，產品以小重量、使用性能優異而最牛。

東莞 市立維創展信息技術局限總部，優缺點分銷系統TOREX電源適配器集成電路芯片，海量外盤倉庫，受歡迎配合。

情況了解一下TOREX請點開：//takasago.net.cn/brand/62.html


款式

Type

Output Voltage

Oscillation Frequency

Packages

XC9221A093ER-G

Soft-start internally set with integral protection function

FB type

300kHz

USP-6C

XC9221A093MR-G

Soft-start internally set with integral protection function

FB type

300kHz

SOT-25

XC9221A095ER-G

Soft-start internally set with integral protection function

FB type

500kHz

USP-6C

XC9221A095MR-G

Soft-start internally set with integral protection function

FB type

500kHz

SOT-25

XC9221A09AER-G

Soft-start internally set with integral protection function

FB type

1.0MHz

USP-6C

XC9221A09AMR-G

Soft-start internally set with integral protection function

FB type

1.0MHz

SOT-25

XC9221B093ER-G

Soft-start externally set with integral protection function

FB type

300kHz

USP-6C

XC9221B093MR-G

Soft-start externally set with integral protection function

FB type

300kHz

SOT-25

XC9221B095ER-G

Soft-start externally set with integral protection function

FB type

500kHz

USP-6C

XC9221B095MR-G

Soft-start externally set with integral protection function

FB type

500kHz

SOT-25

XC9221B09AER-G

Soft-start externally set with integral protection function

FB type

1.0MHz

USP-6C

XC9221B09AMR-G

Soft-start externally set with integral protection function

FB type

1.0MHz

SOT-25

XC9221C093ER-G

Soft-start internally set without integral protection function

FB type

300kHz

USP-6C

XC9221C093MR-G

Soft-start internally set without integral protection function

FB type

300kHz

SOT-25

XC9221C095ER-G

Soft-start internally set without integral protection function

FB type

500kHz

USP-6C

XC9221C095MR-G

Soft-start internally set without integral protection function

FB type

500kHz

SOT-25

XC9221C09AER-G

Soft-start internally set without integral protection function

FB type

1.0MHz

USP-6C

XC9221C09AMR-G

Soft-start internally set without integral protection function

FB type

1.0MHz

SOT-25

XC9221D093ER-G

Soft-start externally set without integral protection function

FB type

300kHz

USP-6C

XC9221D093MR-G

Soft-start externally set without integral protection function

FB type

300kHz

SOT-25

XC9221D095ER-G

Soft-start externally set without integral protection function

FB type

500kHz

USP-6C

XC9221D095MR-G

Soft-start externally set without integral protection function

FB type

500kHz

SOT-25

XC9221D09AER-G

Soft-start externally set without integral protection function

FB type

1.0MHz

USP-6C

XC9221D09AMR-G

Soft-start externally set without integral protection function

FB type

1.0MHz

SOT-25
