CINCON汽車底盤安裝程序/ DIN導軌30-600W

正式發布時間：2021-01-11 17:00:27     閱覽：1849

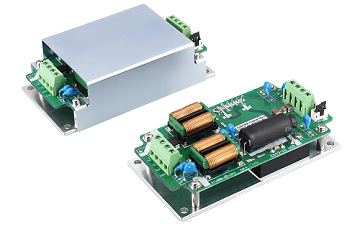

CINCON公司提供30W-600 W底盤安裝和DIN導軌DC-DC轉換器，是可以集成散熱器可改善熱性能。CINCON底盤安裝/DIN導軌30-600W的特點包括寬輸入范圍、輸入過電壓保護、穩定輸出和連續短路保護。

武漢市立維創展高新科技限制實業公司是CINCON24v電源模塊電源的二級代理商，給予CINCON電原適配器組件直流電電壓電、交直流電原電電壓電原適配器、LED電源開關等，原新產品進品，品質能保證，多少錢優質，歡迎圖片服務咨詢。


CINCON底盤安裝/ DIN導軌30-600W

12:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB50W12-72SXX-CMFC(D)

30-50W

14 -160V

5V, 12V, 24V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)

4:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CHB/CHE50-100W-CM/DIN

100W, 50W, 75W

18~75V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

Screw Terminal

4.61x2.54x1.03

CQB/CQE50-150W-CM/DIN

100W, 150W, 50W, 75W

18~75V, 43~160V, 66~160V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

Screw Terminal

4.41x1.57x1.98

CQB100W-110SXX-CMFC(D)

100W

43-160V

5V, 12V, 15V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)

CQB150W-110SXX-CMFC(D)

150W

43~160V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)

CHB200W-110SXX-CMFC(D)

200W

43-160V

5V, 12V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)

CHB300W-110SXX-CMFC(D)

300W

43-160V

3.3V, 5V, 12V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)

CFB600W-110SXX CMFD

600W

43-160V

12V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

9.45x4.33x1.65

2:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB150-300SXX CMFC(D)

150W

180~425V

5V, 12V, 15V, 24V, 28V, 48V

Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled

4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)

CHB300-300SXX CMFC(D)

300W

180~425V

5V, 12V, 24V, 28V, 48V

Screw Terminal
Build in filter
EN45545-2
Baseplate Cooled

6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)
