徽波元元件封裝
備貨型號 | 改用技術參數 | Profile | Gender | Pin/Dielectric Diameters(inch) | Max. Frequency |
C-292-07A-9 | 292-07A-9 | Narrow | Female | 0.005/0.03 | 26.5 GHz |
C-292-06A-9 | 292-06A-9 | 0.007/0.03 | |||
C-292-05A-9 | / | 0.007/0.03 | |||
C-292-04A-9 | 292-04A-9 | 0.01/0.05 | |||
C-293-04A-9 | 293-04A-9 | Male | 0.005/0.03 | 27 GHz | |
C-293-03A-9 | 293-03A-9 | 0.007/0.03 | |||
C-293-02A-9 | / | 0.007/0.03 | |||
C-293-01A-9 | 293-01A-9 | 0.01/0.05 |

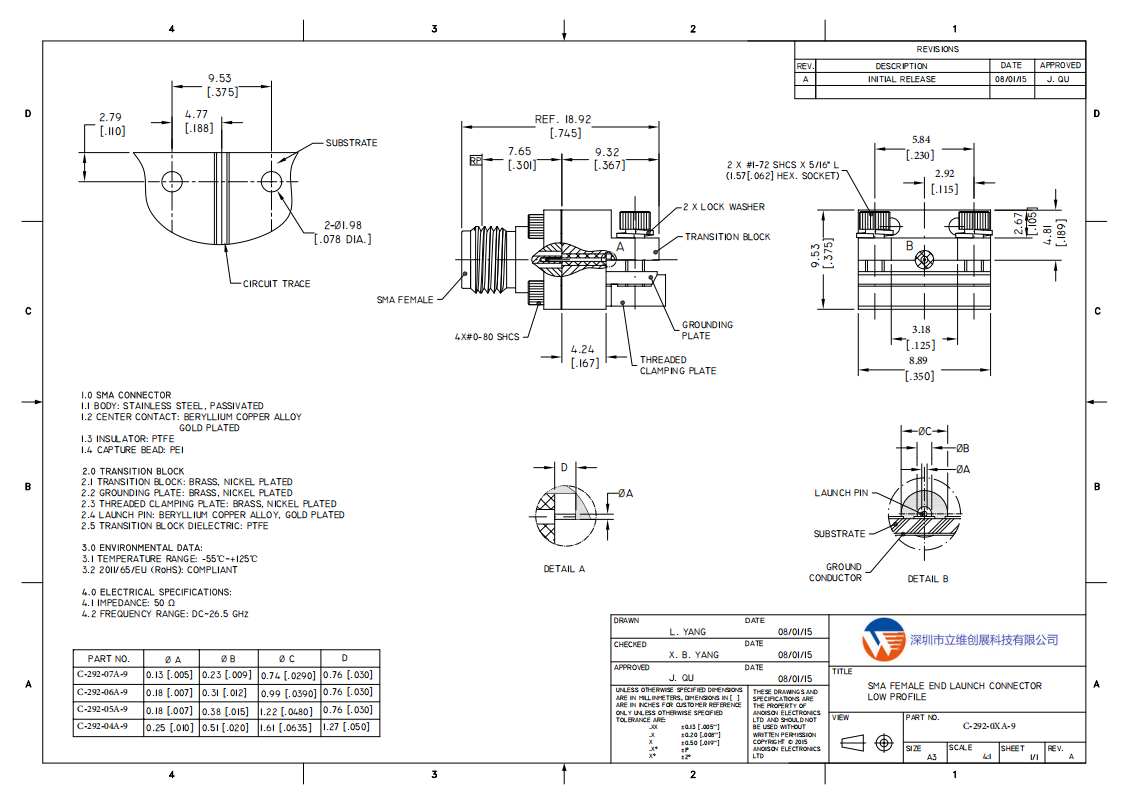

C-292-0XA-9 企業產品產品規格書進行下載
全產品End launch尺寸規格書下載下載
