1500-2200 MHz Directional Coupler
The Q10HK-1900R is a broadband, bi-directional coupler with high directivity and high power handling. Q10HK-900R is a replacement for Soshin P/N GSC310-10M1900. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…
Specifications

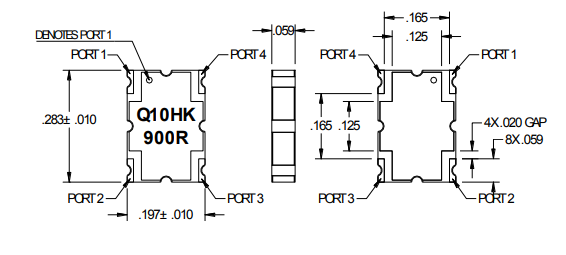

- Size: 0.283 x 0.197 inches
- Frequency: 1.5 – 2.2 GHz
- Coupling: 10 dB ± 1 dB
- Directivity: 20 dB
- VSWR: 1.2:1
- Insertion Loss: 0.15 dB
- Power: 50 W
- Evaluation board 722-0006-07-E01
