700-1200 MHz Directional Coupler
The Q30HE-900R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…
Specifications

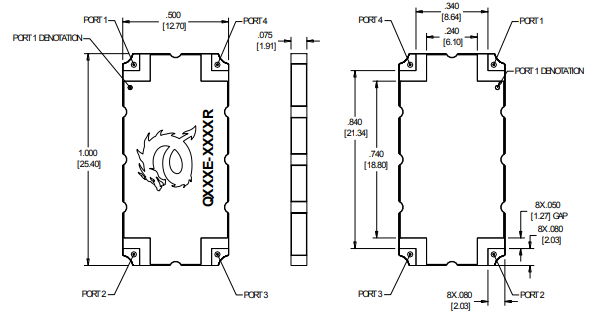

- Size: 1.00 x 0.50 inches
- Frequency: 0.7 – 1.2 GHz
- Coupling: 30.5 dB ± 1 dB
- Coupling Flatness: ± 0.3 dB
- Directivity: 18 dB
- VSWR: 1.10:1
- Insertion Loss: 0.1 dB
- Power: 355 W
- Evaluation board 722-0006-05-E01
