Features
- 2300 – 2700 MHz
- Low Loss
- High Isolation
- Tight Amplitude Balance
- 90 deg Quadrature
- Surface Mountable
- CTE Matched
- WiBro, WiFi, DMB, ISM, WLAN, MMDS Band
- Tape and Reel Option
Specifications

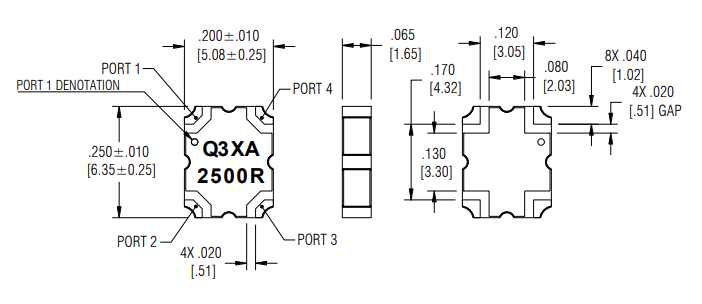

- Size: .250 x .200 inches
- Frequency: 2300-2700 MHz
- Power: 80 W
- Insertion Loss: .14 dB
- Amplitude Balance: ± .3
- Isolation: 23 dB
- VSWR: 1.17
- Phase Balance: ± 2
